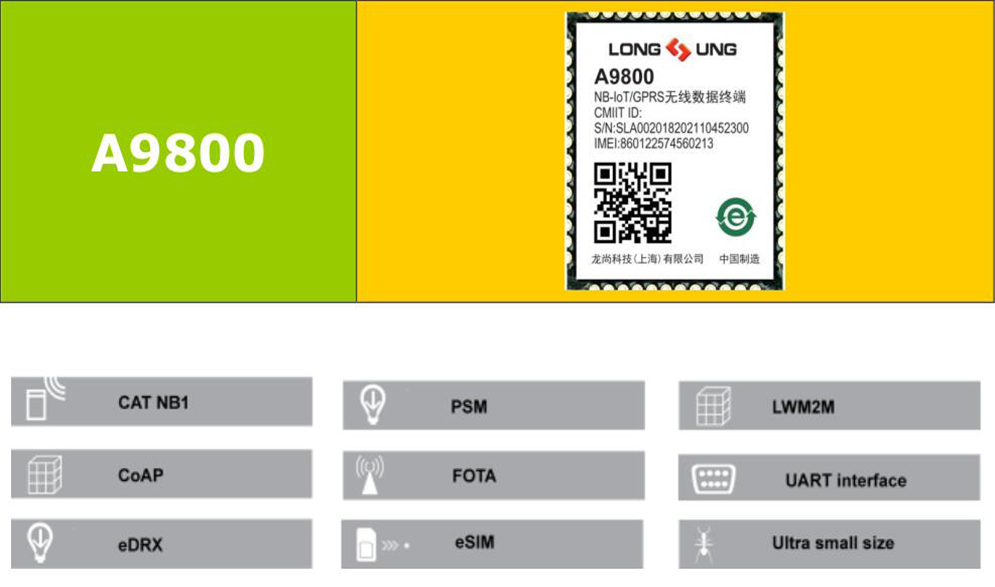

Longsung A9800 is one of the smallest NB-IoT/GPRS modules in LCC castellation packaging with the
compact size of 20.0 × 24.0 × 2.5mm, ultra low power consumption and extended temperature range.
Designed for use in NB-IoT network. A9800 enables connect to the Internet at DL data speed up to
200Kbps. In the area where NB-IoT service are not available, A9800 still enables reliable and secure
data connect over GPRS network.
Longsung A9800 is one of the smallest NB-IoT/GPRS modules in LCC castellation packaging with the
compact size of 20.0 × 24.0 × 2.5mm, ultra low power consumption and extended temperature range.
Designed for use in NB-IoT network. A9800 enables connect to the Internet at DL data speed up to
200Kbps. In the area where NB-IoT service are not available, A9800 still enables reliable and secure
data connect over GPRS network.
To save space on the application platform, A9800 comes as an extremely slim and compact module.
This makes it ideally suited for a broad range of mobile computing devices, and particularly offers easy
integration with AMI, Intelligent Buildings ,Smart city and other M2M application.
? Cat NB1 R13 Up to 200Kbps DL&UL
? GPRS: Up to 85.6Kbps DL&UL
Interfaces:
? LCC package
- Power supply
- USIM/SIM 3V, 1.8V
- UART
- SYS_STATUS
- IIC
- RESET#
- POWER_ON#
- ADCs (1.8V tolerance)
-SPI
-GPIOs
? TCP/IP
? UDP
? CoAP
? LWM2M
? MQTT
? eSIM
? FOTA
Approvals:
? RoHS/CCC/CTA/SRRC
